Retaining walls need to have a proper anchoring and drainage system. The posts must be set four foot on center for wood and 5′ to 6′ on center for solider piles (steel I beams) in concrete and deep enough to hold up to years of fierce winters. If you don’t like the standard look of a retaining walls we can dress it up with shingles. Or we can put the wall boards on the outside of the wall.

Steel posts with 3″ x12″ pressure treated fir wall boards and a 2″ x 6″ con-heart redwood cap. The wall has 1′ thick by 2′ high of 3/4″ drain rock and filter fabric behind it.

100_0085

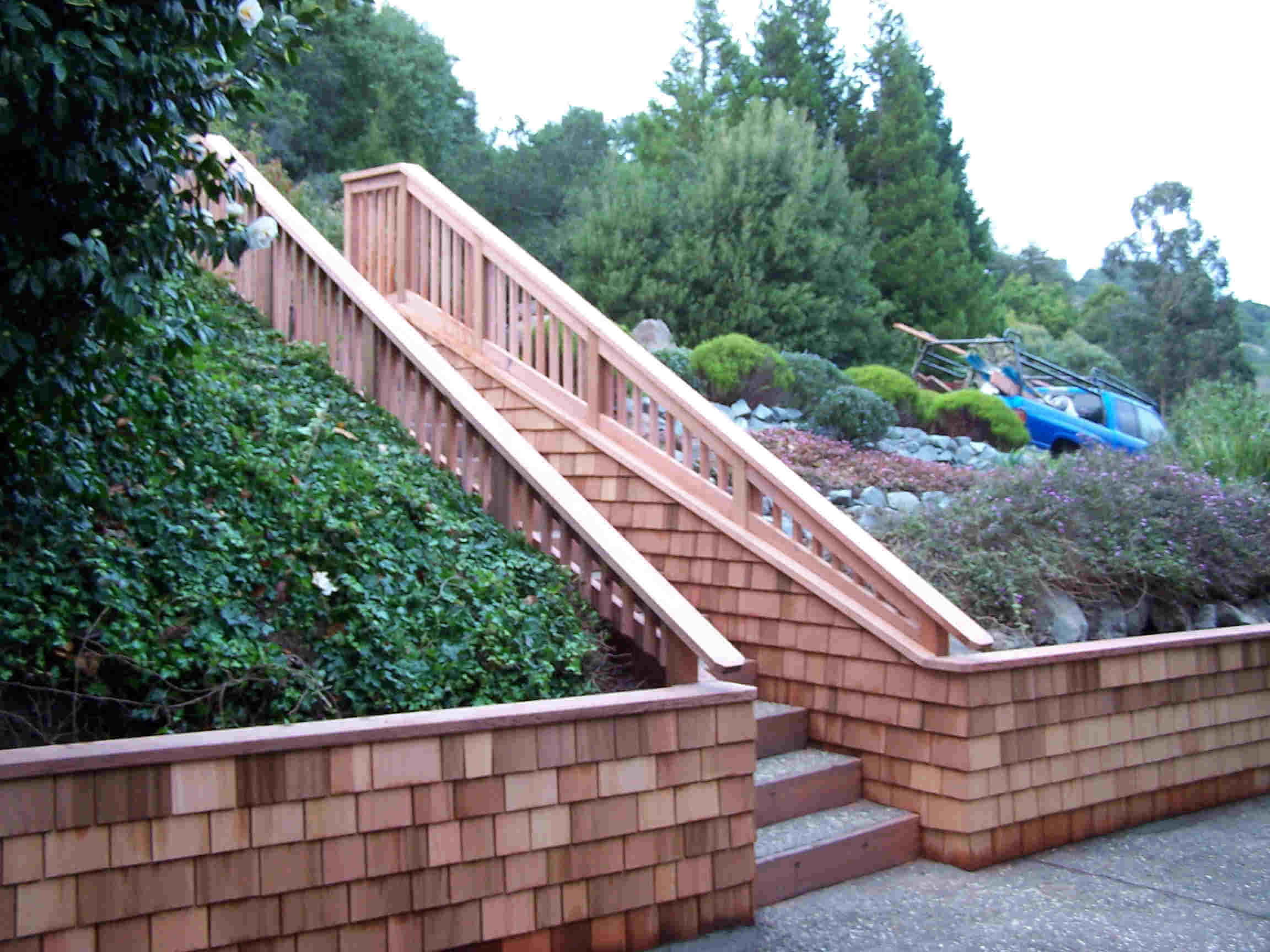

The shingled walls below are completely new. As are the stair facing and the railing.

Retaining walls

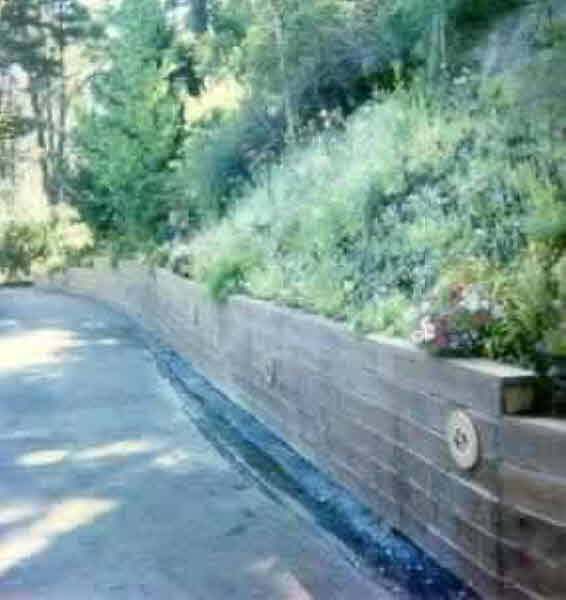

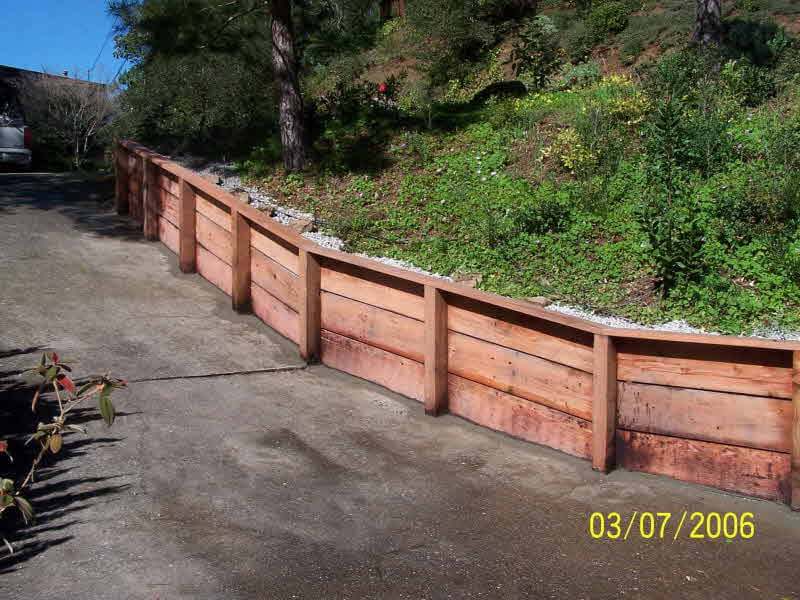

All redwood wall

PhotoELF Edits:
2008:06:21 --- Batch Resized
LEAD Technologies Inc. V1.01

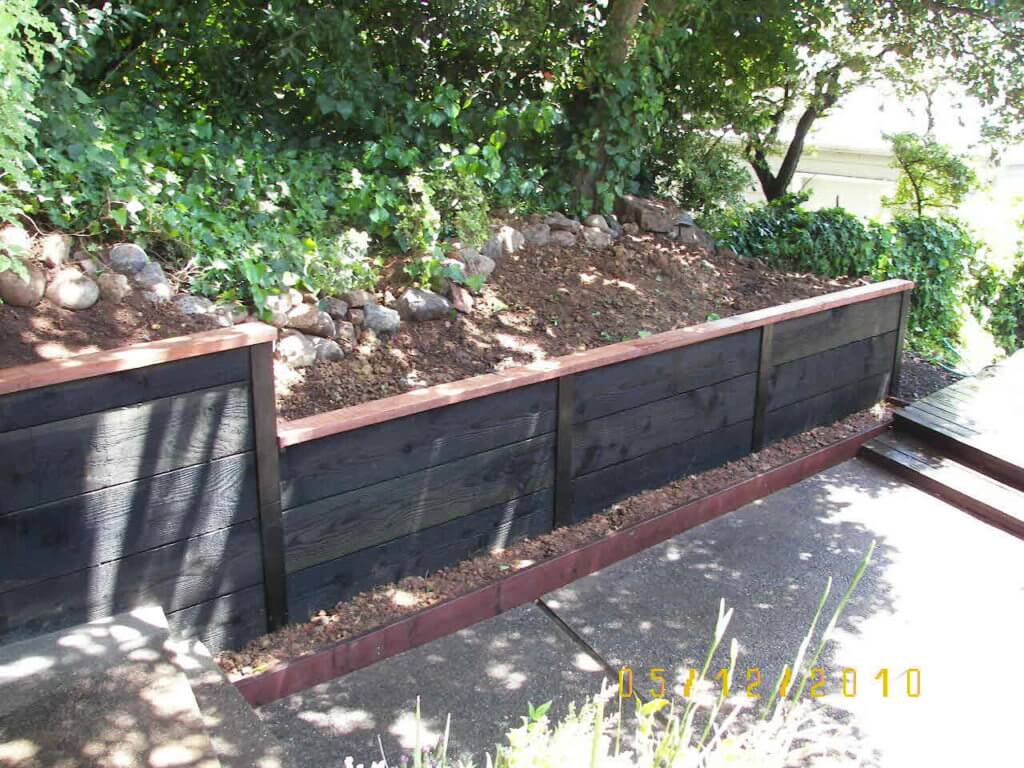

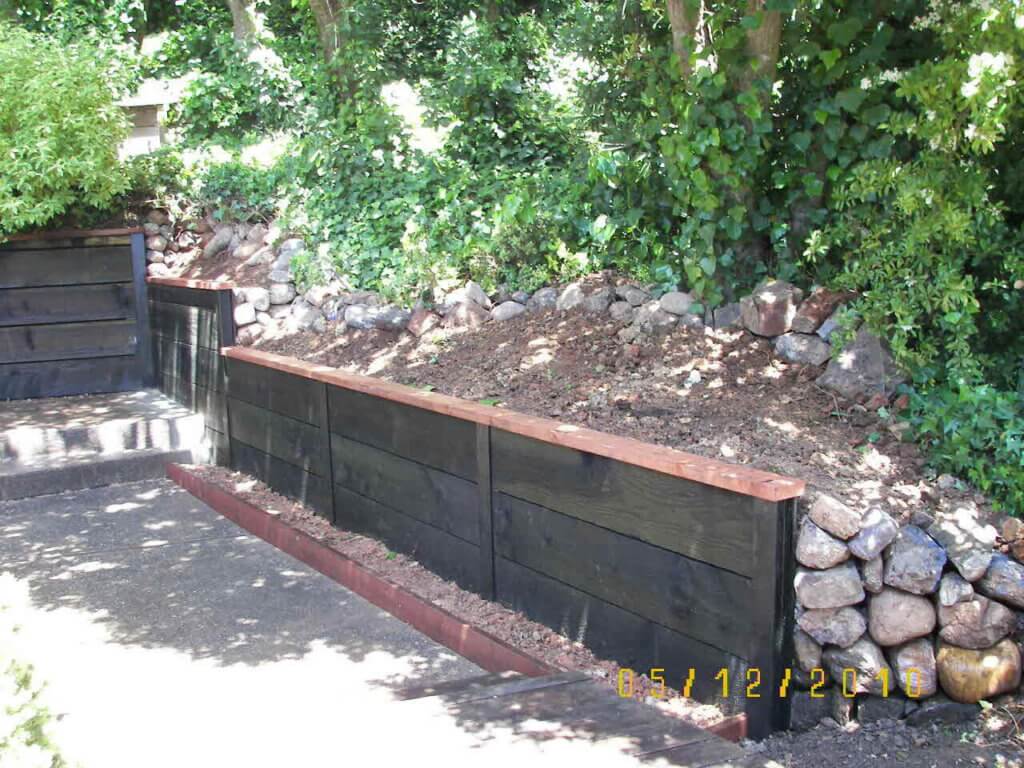

The Boards are on the outside of the posts, below.

PhotoELF Edits:
2008:06:21 --- Batch Resized
LEAD Technologies Inc. V1.01

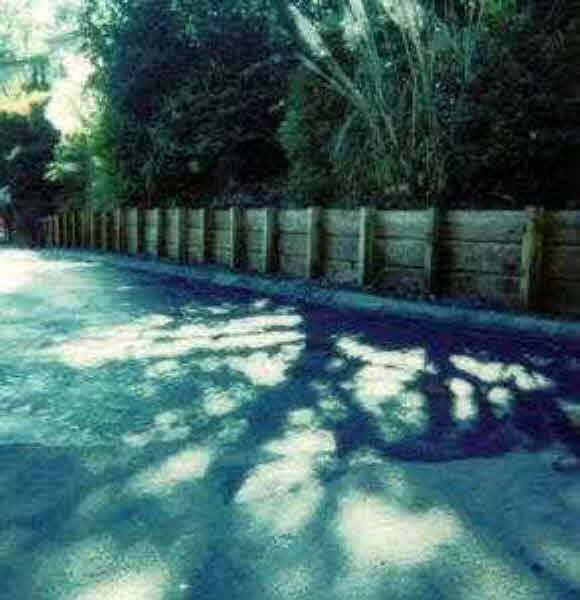

All pressure treated fir wall

PhotoELF Edits:
2008:06:21 --- Batch Resized
LEAD Technologies Inc. V1.01

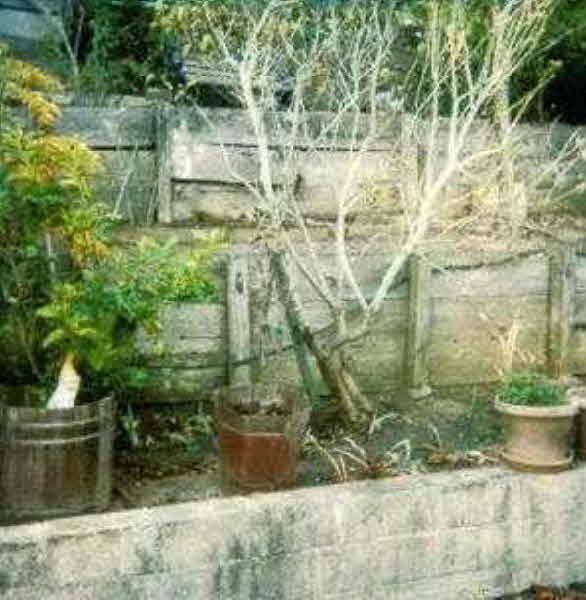

Before.

PhotoELF Edits:
2008:06:21 --- Batch Resized
LEAD Technologies Inc. V1.01

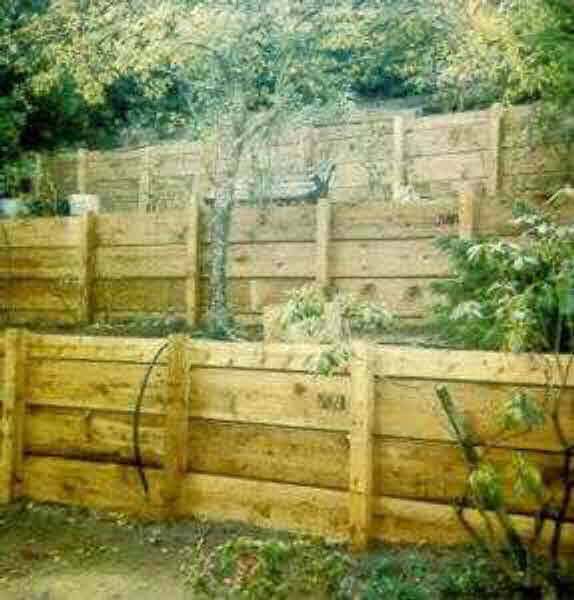

After

The before wall would not of lasted the El Niño winter of 1997. Buy replacing it before the rains started the home was saved by the new walls on the right.
